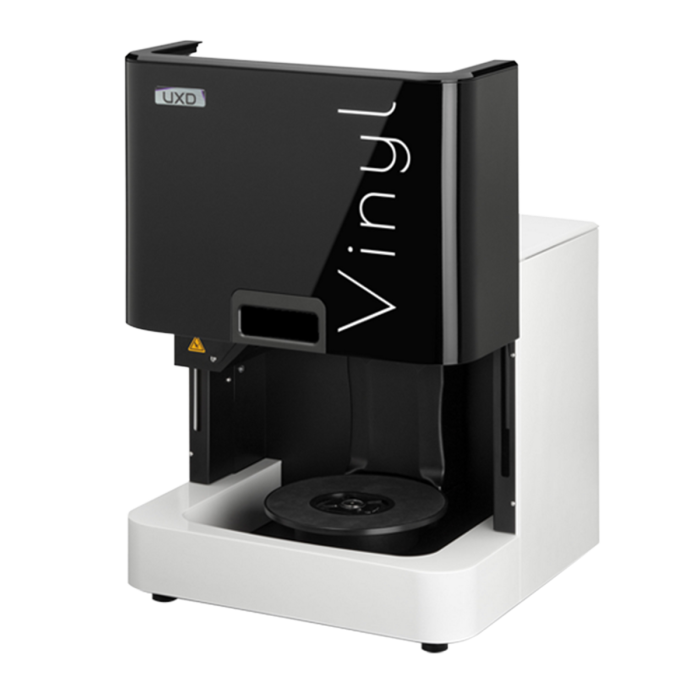

Dental Scanner

Two high-resolution cameras and an advanced 3D sensor deliver perfect scan data. Two additional cameras and a projector give the option to choose between four modes: The number of cameras as well as their resolution can be determined, so that a high-resolution data set can be created with full scan coverage or -saving time- a reduced data set. Voluminous articulators can be easily placed in the scanner since the system plate has been enlarged.

Number of cameras: 4
Camera pixels: 2 × 3.2 MP
                      2 × 1.0 MP
Number of projectors: 3
Accuracy (ISO 12836): 4 µm
Output data format: PLY, STL
Light source: Blue light LED
Measuring technique: Stripe light triangulation
Measuring field (X×Y×Z):     Camera 1: 80 × 60 × 82 mm
                                         Camera 2: 88 × 63 × 82 mm
Dimensions (W×H×D): 455 × 430 × 435 mm
Weight: 25 kg
Connections: 1 × USB, 1 × power
Mains voltage: 100 - 240 VAC, 50/60 Hz
Warranty: 36 months

Scope of delivery: Vinyl UXD
                          Power cable
                          USB cable
                          Accessories case

Content of Accessories case:    3D calibration model
                                             Object holder
                                             Universal plate
                                             multiDie adapter
                                             Triple Tray® impression holder
                                             4-tooth bar (Twin Tray)
                                             Adhesive pads
                                             Data carrier with dental scan, calibration data
